Automotive Light Source

Quality Guarantees Safety, Innovation Creates Individuality

S-CSP Series L-Ceramic Series

S-CSP Series

Factory-installed products series: Developed in-house by HGC, featuring a proprietary SCSP packaging, Small size, and an adjustable emission angle of 120°-175°. It finds applications in various scenarios.

Picture Part No. Power（W） Size（mm） Color Test/Max IF（mA） Flux（lm） Tj （℃） Rth
(K/W)		 ESD HBM
（KV）		 Beam Angle
（°）

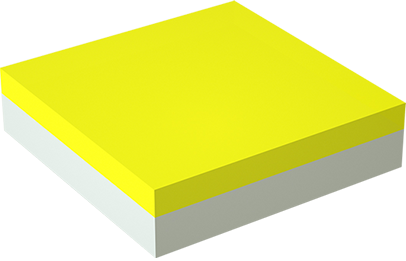

SCSP0808 HGC-S0808A002W60E-BD1 0.2 0.8*0.8*0.45 White 60/100 22-34 150 55 2 140

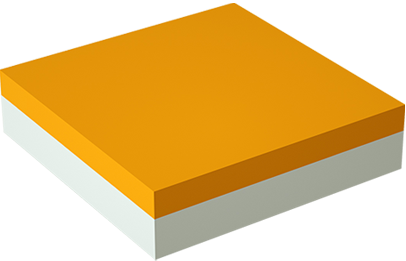

HGC-S0808A002A18X-BD1 0.2 0.8*0.8*0.45 Amber 60/100 16-22 150 55 2 140

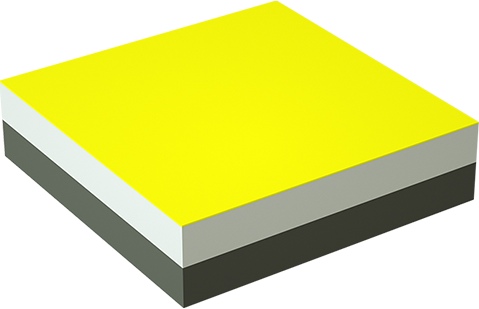

SCSP1313 HGC-S1313A005W60E-CP1 0.5 1.3*1.3*0.7 White 150/250 55-80 150 9.6 8 120

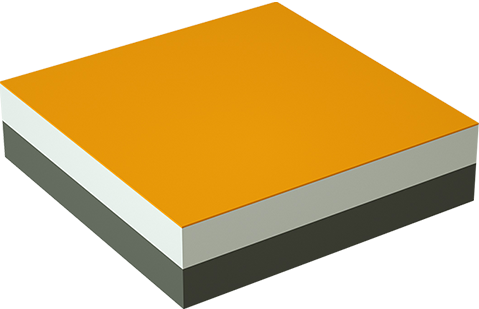

HGC-S1313A005A18X-CP1 0.5 1.3*1.3*0.75 Amber 150/250 45-65 150 9.6 8 120

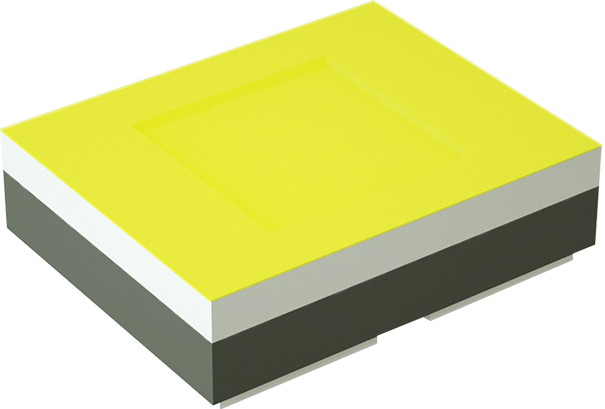

S1612 HGC-S1612B010W60E-CP1 1.0 1.6*1.2*0.67 White 350/500 135-190 150 5.5 8 120

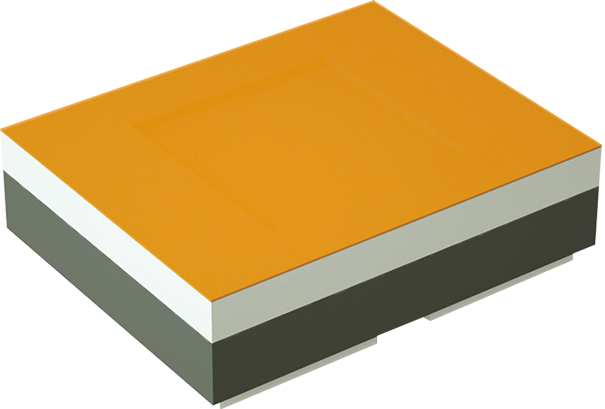

HGC-S1612B010A18X-CP1 1.0 1.6*1.2*0.75 Amber 350/500 105-160 150 5.8 8 120

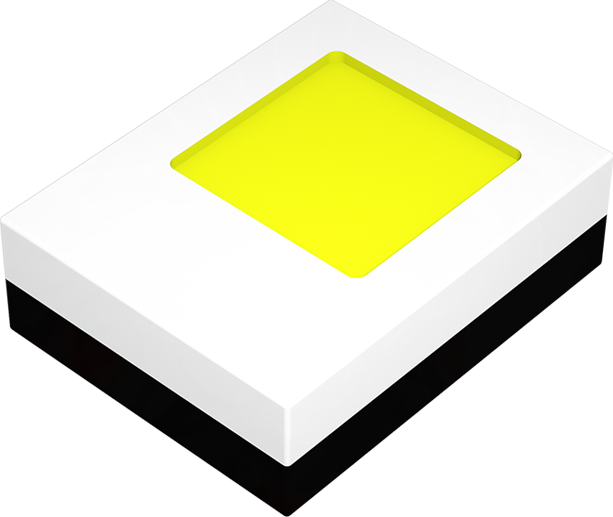

S1915 HGC-S1915B030W60E-CG1 3.0 1.9*1.5*0.75 White 1000/1500 370-450 150 4.4 8 120

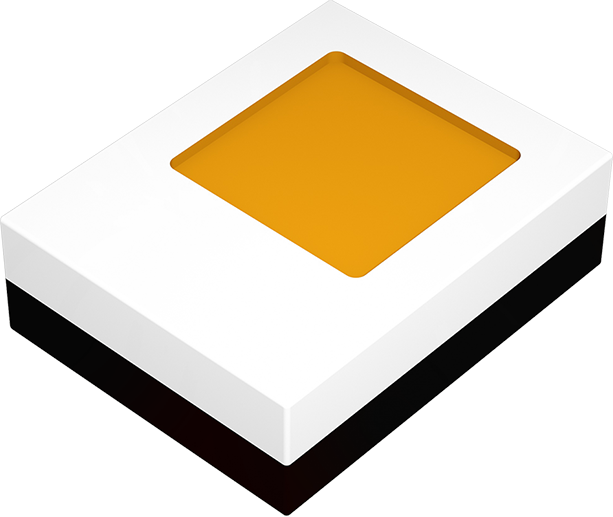

HGC-S1915B030A18X-CG1 3.0 1.9*1.5*0.75 Amber 1000/1500 200-280 150 4.5 8 120

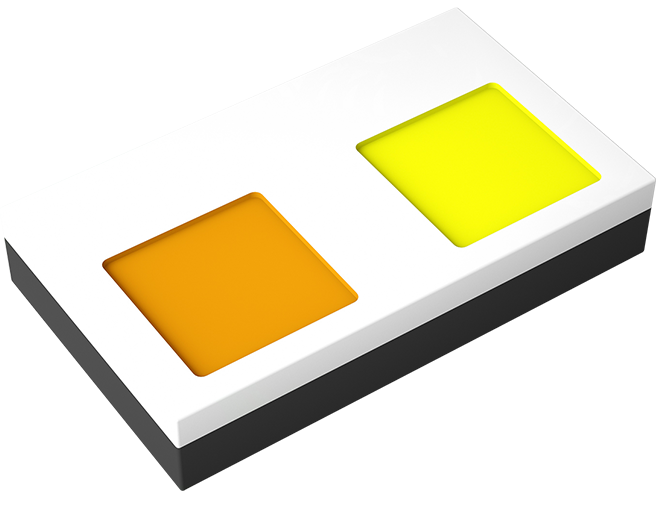

Yellow and white dual core series HGC-S3219D060WA60E-CG1 3.0 3.2*1.9*0.75 White 1000/1500 370-450 150 4.5 8 120
Amber 200-280

L-Ceramic Series

Ultra High Power aftermarket installed Product: Inverted structure chip coating and packaging, high thermal conductivity ceramic eutectic process, compact high-power light source, excellent thermal conductivity and high reliability, uniform light color, stable lumen output.

Package Piture Part No. Power(W) Color Test/Max IF(mA) Flux（lm） Tj(℃) Rθj-s(K/W) ESD HBM(KV) Beam Angle(°)
L2016 HGC-L2016A030W60E-CP 5.0 White 1000/1500 350-500 150 4 2 120
L3570 HGC-L3570F180W60E-CP 18.0 White 1500/2000 1600-2200 150 0.75 2 120
